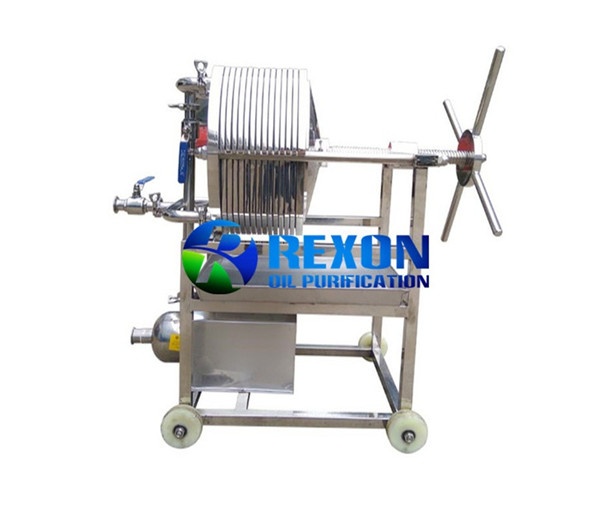

304 Stainless Steel Plate Pressure Oil Purifier

304 Stainless Steel Plate Pressure Oil Purifier
  • 304 Stainless Steel Plate Pressure Oil Purifier
  • 304 Stainless Steel Plate Pressure Oil Purifier
  • 304 Stainless Steel Plate Pressure Oil Purifier
  • 304 Stainless Steel Plate Pressure Oil Purifier

This machine is specially designed for cooking oil filtration for human consumption. PL equipped with high-precision filter (1 micron), which can remove oil impurities, thereby improving oil purity and brightening oil color.


  • Product No.: PL-30

Details

Introduction:304 stainless steel plate pressurized type oil purifier Series PL, its whole machine body and all filter plate elements are made of 304 stainless steel, and equip with stainless steel oil pump. This machine is specially designed for cooking oil filtration for human consumption. PL equipped with high-precision filter paper (1 micron), which can remove oil impurities, thereby improving oil purity and brightening oil color.

Main Parameters

Model

PL-30

Capacity(kg/h)

30L/M

Filtering Area (≥)

0.3

Power(Kw)

1.1

Working Pressure(Mpa)

0 - 0.5

Power Supply

380V, 50HZ, 3Phase or As Requirement

Board Frame Size(mm)

180*180

Filtering precision

1 Micron

Filter Frame Number

11

Filter Plate Number

12

Dimension(mm)

700*300*720

Weight(kg)

76


Advantages:1. Low noise, quick and convenient to replace filter paper.
2. Simple structure, sasy to use, lower operation cost.
3. Special boosting type oil pump has strong suction ability and make the machine to be used in more oil types.
