Aging Transformer Oil Regeneration and Recycling Plant Equip with Silica Gel Regeneration Tank

Aging Transformer Oil Regeneration and Recycling Plant Equip with Silica Gel Regeneration Tank
  • Aging Transformer Oil Regeneration and Recycling Plant Equip with Silica Gel Regeneration Tank
  • Aging Transformer Oil Regeneration and Recycling Plant Equip with Silica Gel Regeneration Tank
  • Aging Transformer Oil Regeneration and Recycling Plant Equip with Silica Gel Regeneration Tank

Rexon Series ZYD-I Vacuum Transformer Oil Regeneration Purifier is a high vacuum oil dehydration, oil degassing and oil filtration system combined with a high efficient oil regeneration device contains sufficient silica gel material for oil regeneration.


  • Product No.: ZYD-I-200(12000LPH)

Details

Application

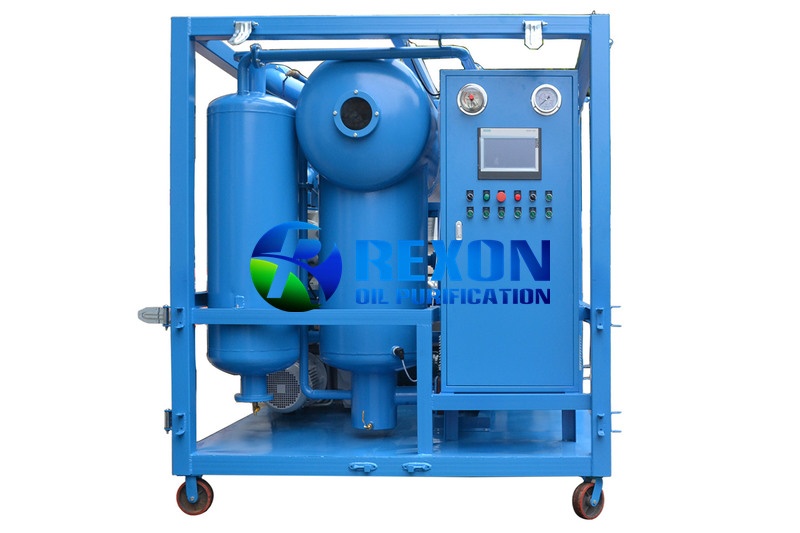

Rexon ZYD-I-200(12000LPH) Aging Transformer Oil Regeneration and Recycling Plant Equip with Silica Gel Regeneration Tank is a high vacuum oil dehydration, oil degassing and oil filtration system combined with a high efficient oil regeneration device which contains sufficient silica gel material for oil regeneration process. This oil regeneration system is especially applied to regenerate used and aging transformer oil, insulating oil. Series ZYD-I system can deal with not only low voltage oil, but also high voltage oil like 110KV, 500KV, 1000KV. It can perform a perfect and super high efficient oil purification, oil filtration and oil recycling process to old transformer oil. The series ZYD-I Double-stage vacuum Transformer oil regeneration purifier not only provide dewaters, degases and remove impurities, but also remove acidity, sludge, free carbon, deep oxide, and other soluble oil decay products and discoloration. And it can improve the voltage and make the every index like acid value, PH value, of the insulation oil reach the national standard and improve the insulation oil's index. This is accomplished by the use of high vacuum degasification technology and particulate filters combined with our special silica gel. After treating, the oil can be reused as new.

Advantages

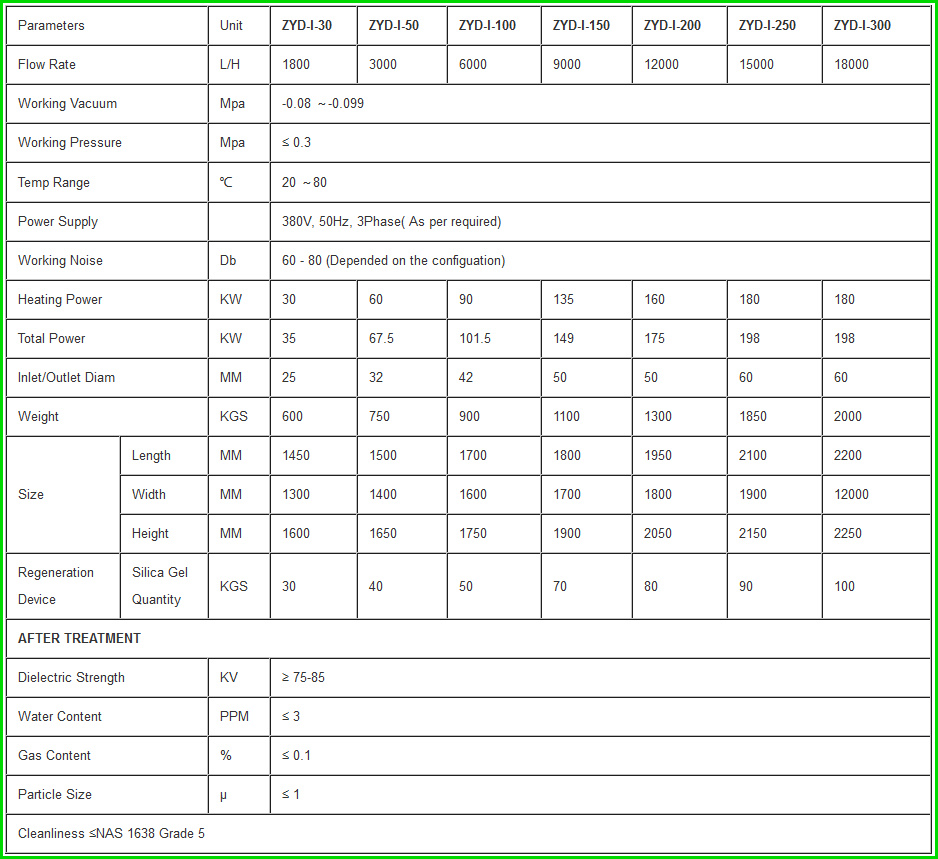

Besides the oil purification and oil regeneration treatment to used transformer oil on-site, ZYD-I Vacuum Transformer Oil Regeneration Purifier can be used as an independent powerful vacuum producer to supply vacuum to transformers, making transformer vacuum evacuation, oil injection to transformer very high efficient. So one system equals to three system which can do all above jobs, and achieve a successful and high efficient on-site transformer oil and transformer maintaining purpose. Technical Parameters
