The REXON Multi-Function Transformer Oil Filtration Machine is an oil processing equipment designed to treat used transformer oil and give it a new life.


  • Product No.: ZYD-200/12000LPH

Details

Application

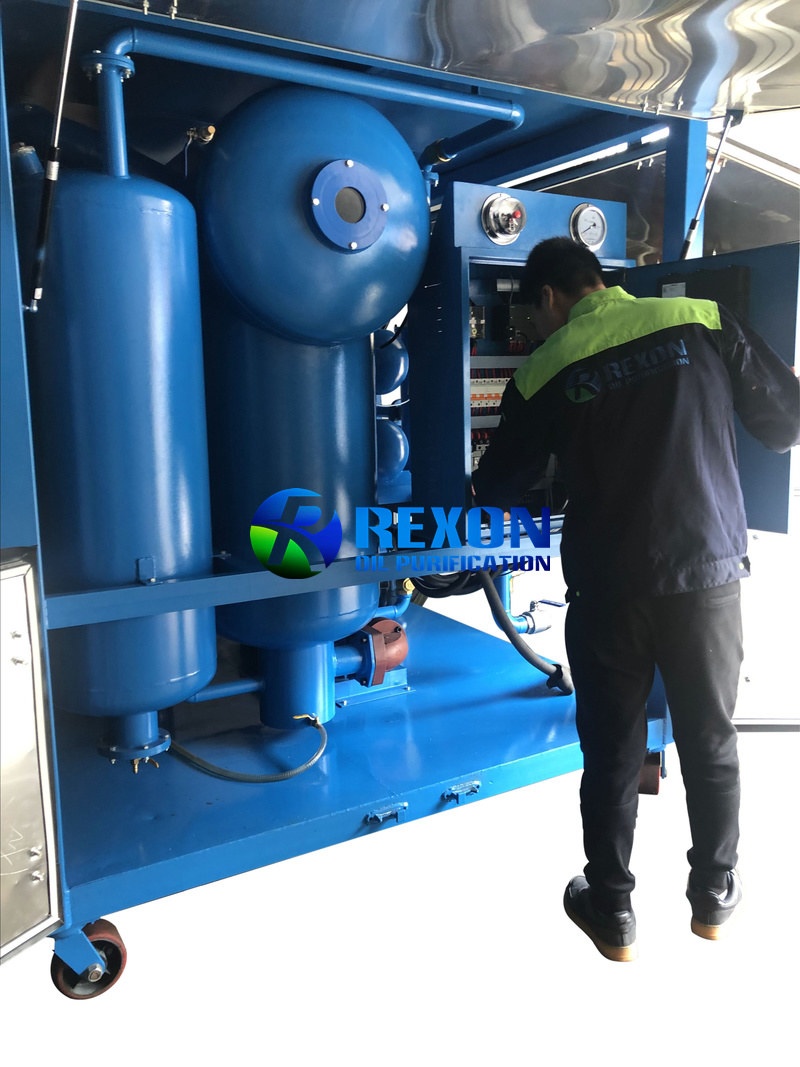

The REXON Multi-Function Transformer Oil Filtration Machine is an oil processing equipment designed to treat used transformer oil and give it a new life. The machine has the function of dehydrating, degassing, purifying, filtering and regenerating the transformer oil. Therefore, the moisture, gas and impurity contaminants in the transformer oil will be removed after being purified by our transformer oil filter.Machine DetailsUnder the filtration of the multi-stage filter element, both large and small particle impurities are removed by filtration. The free water, micro-water and soluble water in the transformer oil will be removed by the high vacuum system at a constant temperature of 55-65 °C. At the same time, the gas in the transformer oil will also be removed.Treated Oil Data
1. Water Content≤3PPm
2. Gas Content≤0.1%
3. Residual moisture: ≤3PPm
4. Particles: ≤1-5μm
5. Breakdown Voltage: ≥75kv
6. Cleanliness: ≤ NAS1638 5 class standards

AdvantagesIn addition to filtering, purifying, and regenerating transformer oil, this machine can also be used for vacuuming and oiling the transformer.

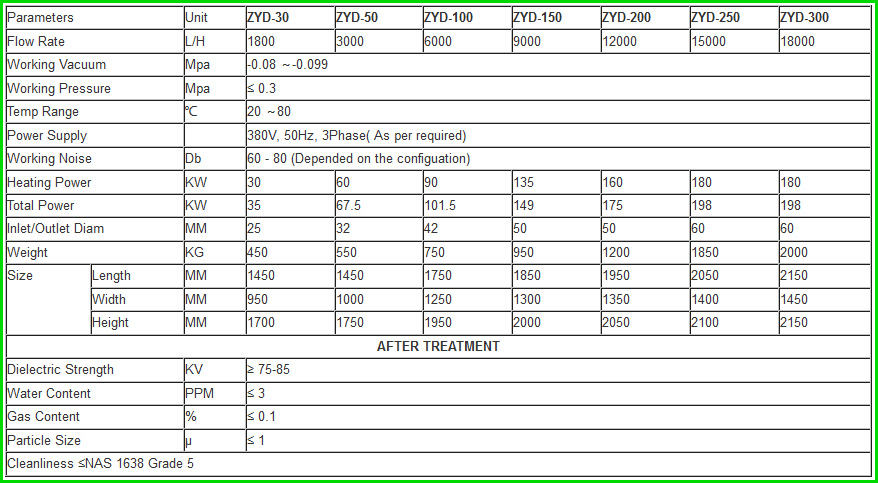

Technical Parameters
