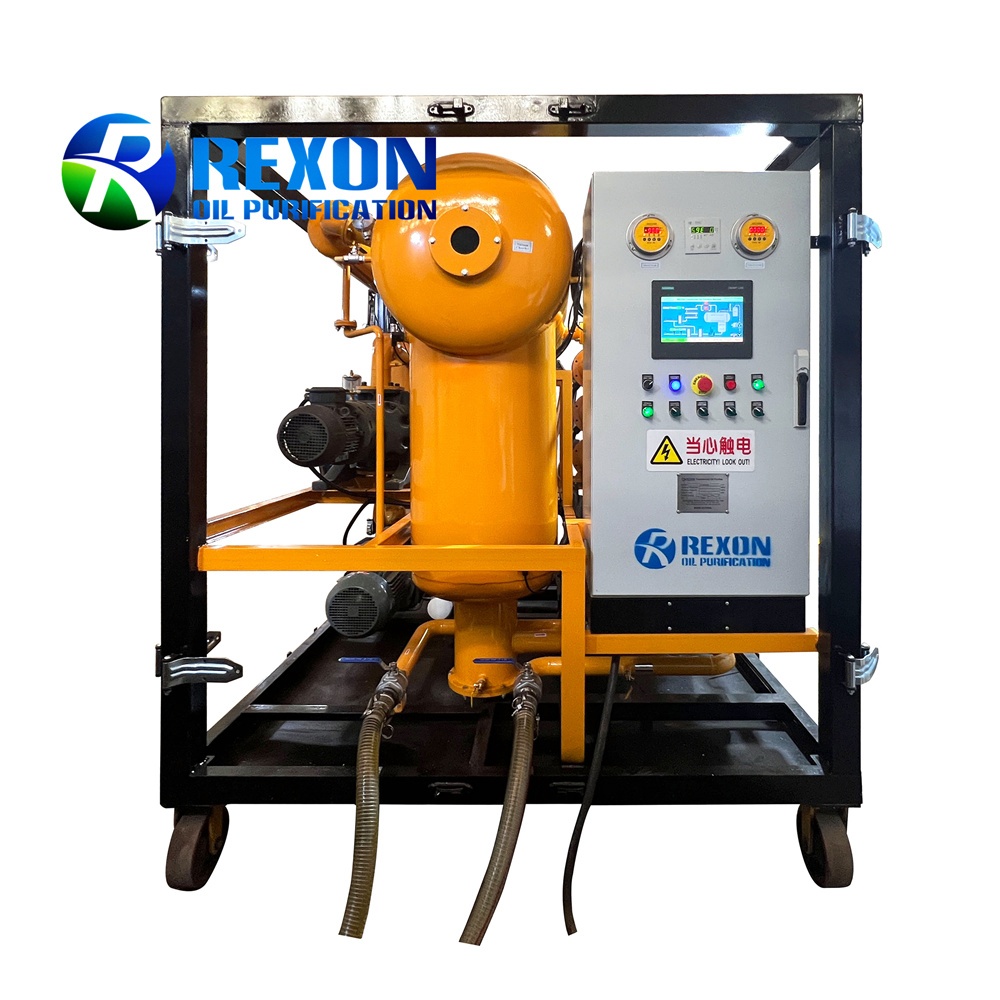

Fully Automatic Deluxe Type Transformer Oil Purifier Machine

PLC fully automatic controlling system with SIEMENS touch screen allows the machine to work or online running fully automatically, no operator is needed.

Product No.: ZYD-200(12000LPH)

Online Inquiry Email Us

Details

Application

This ZYD-200(12000 Litres/Hour) Fully Automatic Transformer Oil Purifier Machine is designed for transformer oil filtration & transformer vacuum pumping of various on-site projects of power transmission and generation stations. It can remove trace water, gas and impurities from insulating dielectric oil/transformer oil, improving the insulating oil performance index, very suited for purification for high voltage insulating oil of 110KV, 220KV, 500KV, 750KV, 1000KV from power transmission equipment.

Since it is a deluxe-type machine, it is equipped with SIEMENS PLC fully automatic controlling system and 10 inches colourful touch screen, which allows the device to work or online running fully automatically after a one-touch start-up, no operator is needed. And it is equipped with an online moisture sensor, besides showing testing data on the PLC screen, the automatic shutdown of the machine can also be realized by setting the PPM value of moisture for the oil.

Features1. It has a two-stage high-speed vacuum system and a multi-stage vacuum analysis separation system, which can quickly remove moisture, gas, impurities, polar substances and other degraded substances from the oil.
2. The three-dimensional flash dehydration and degassing technology is adopted to efficiently remove water and gas from the oil, so that the breakdown voltage can be rapidly increased to more than 70KV.
3. The effect of one-time filtration is greatly improved, which reduces the risk of oil aging caused by repeated filtration and heating in general oil purifiers.
4. Using the independent dual-channel technology of complex oil and gas, the secondary re-dissolution technology in the separation of oil and gas can be used to quickly remove various organic hydrocarbon gases in the oil, ensuring that the content of acetylene and hydrogen in the oil is zero.
5. Heating by carbon fiber infrared heating system which is the most advanced heating technology, the unique heater structure heats the oil uniformly and easily controlled, it gives out the heat quickly (in 3 seconds after power on) and efficiency of electricity transforming to heat is very high (more than 98%). High efficiency, low density heating method for oil, which can prevent oil cracking at high temperature.
6. The use of multi-stage high β-value compound progressive filtration system can effectively filter the fine particles of mechanical impurities in the oil.
7. Online oil filtering, unattended operation, vacuum oiling of transformers, etc.
8. Advanced liquid level automatic control system, automatic defoaming control system, pressure protection system and safety interlock control ensure long-term, safe and reliable operation of the equipment.
