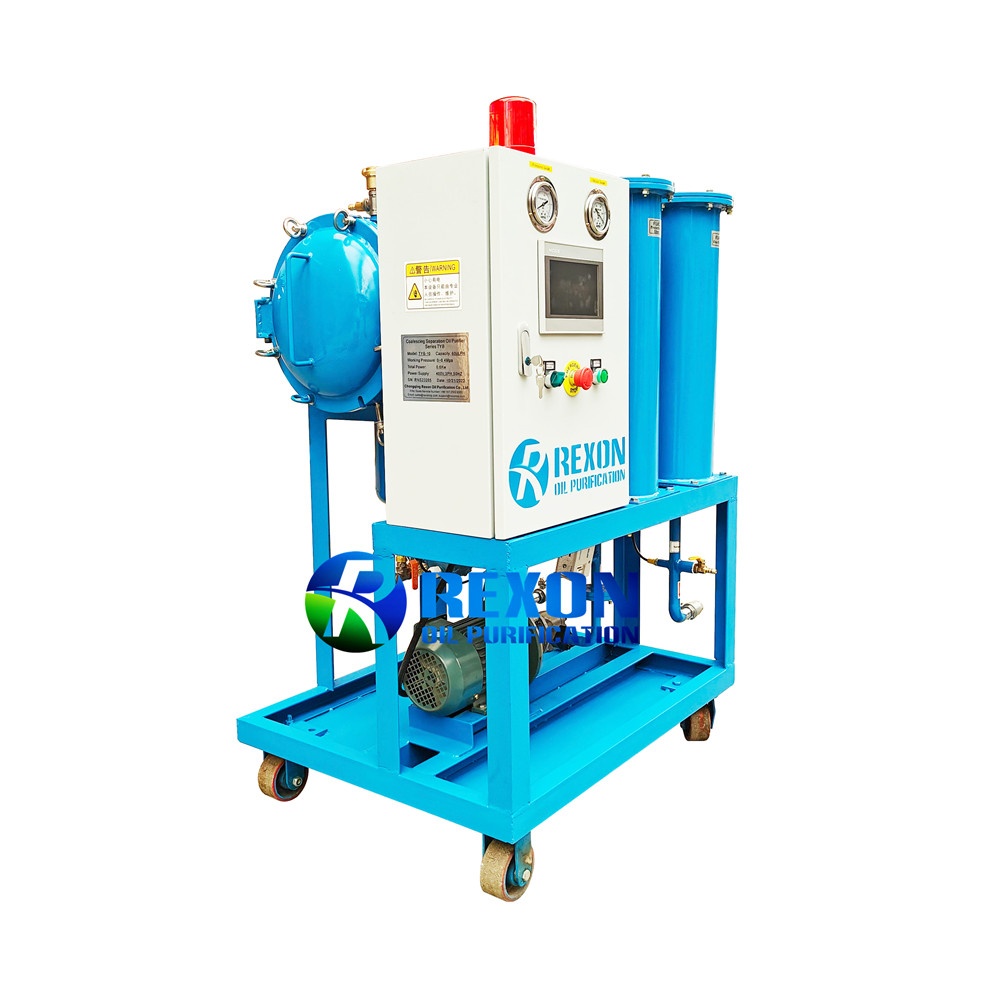

Fully Automatic Coalescing Separation Oil Purifier
Application
REXON TYB-10 fully automatic coalescing separation oil purifier is a specialized equipment used for low viscosity oil purification and filtration, such as turbine oil, light fuel oil, diesel oil, etc. It can quickly remove particle impurities and water, and free water from oil, making the separation efficiency reach more than 95% without heating.
Advantages
1. TYB-10 coalescing separation oil purifier uses advanced coalescing-separation filter element, water separator, and high precise degree fine filter together in an integrated system to make a high efficient oil demulsification and oil dehydration function, which can remove large of water and particles without heating, creates the fastest dehydration speed, and clean the oil by multistage filtration.
2. It is equipped with PLC fully automatic system and touch screen, once the parameters are set in the program, the equipment can run automatically. In addition, if there are any abnormalities, such as system overpressure, filter element being clogged, etc., the machine will issue an alarm and automatically shut down, and the PLC screen will prompt specific errors.
3. Fully automatic water discharging. This purifier is controlled by PLC system, the water removed from the oil will be discharged from the water tank fully automatically.
4. It is equipped with 4 castors, very convenient for movement.
5. It’s easy and simple to move and operate the machine.

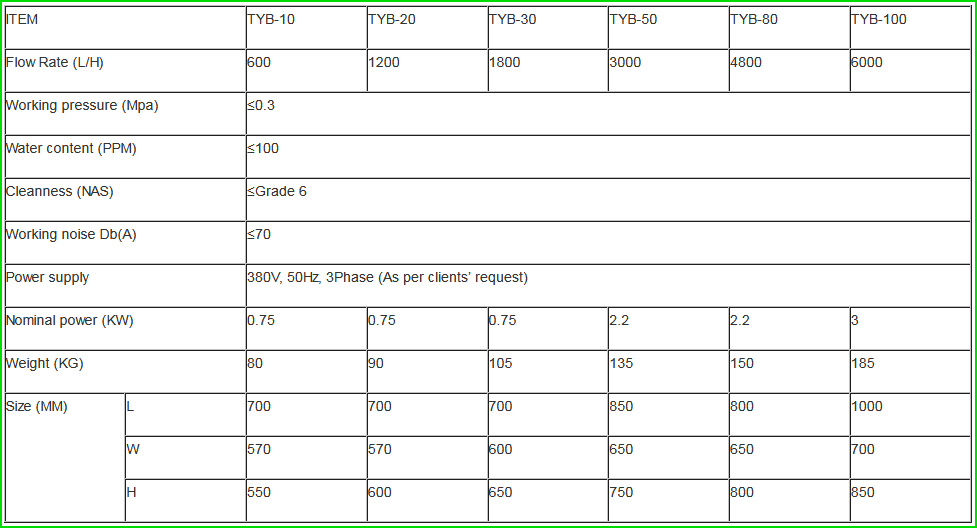

Technical Parameters
