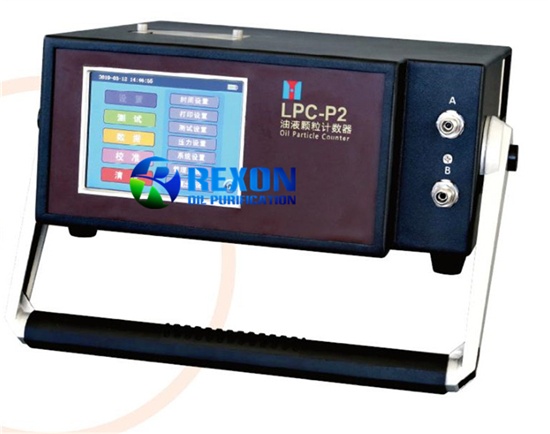

Portable Oil Particle Counter Model LPC-P2

Portable Oil Particle Counter Model LPC-P2
  • Portable Oil Particle Counter Model LPC-P2
  • Portable Oil Particle Counter Model LPC-P2

Suitable for hydraulic oil, lubricating oil, rock shale oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, phosphate ester oil, etc.


  • Product No.: LPC-P2

Details

DescriptionLPC-P2 portable oil particle counter is an instrument specially developed for the detection of pollution levels in oil based on national and international standards such as GB/T 18854-2002 (ISO11171-1999). Suitable for hydraulic oil, lubricating oil, rock shale oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, phosphate ester oil, etc. Laboratory contamination testing. It can also be installed on various hydraulic transmissions, oil filters, washing machines, and test benches to realize on-line detection of system oil cleanliness. Can be widely used in aerospace, power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.
Features
1.Test principle of photoresistance (shading) method specified by International Hydraulic Standards Committee.
2.High-precision laser sensor with wide test range, stable performance, low noise and high resolution.
3.High-precision metering pump sampling method, adjustable sampling speed, high sampling volume accuracy.
4.The pipeline is made of 316L and PTFE, which can meet the testing of various organic solvents and oil products.
5.For laboratory or field measurement, can be built-in pressure reducing device for online high pressure measurement.
6.Can be connected to the pressure chamber to form positive / negative pressure to achieve high viscosity sample detection and sample degassing.
7.Can use a variety of sampling containers such as standard sampling bottles, sampling cups, or directly connect to the hydraulic system to meet the testing requirements of different industries.
8.Built-in multiple calibration curves, compatible with all common standards at home and abroad for calibration.
9.Built-in multiple common standards such as GJB-420A, GJB-420B, NAS1638, ISO4406, SAE4059E, and ГOCT17216, support custom standard tests, and can set required standards according to customer needs.
10.1000 channels can be set for particle size analysis. Built-in data analysis system, can automatically determine the sample level according to standards, with automatic data processing and printing functions.
11.Color touch screen operation, Chinese and English interface, with preset, input, modification and storage functions, easy and fast operation.
12.With RS232 interface, can be connected to a computer or laboratory platform for data processing, or USB for data storage.
13.Built-in lithium battery, can be used without external power supply.


Technical Index
1. Light source: semiconductor laser
2. Particle size range: 0.8-500um (depending on different sensors)
3. Detection channel: 8 channels, arbitrarily set particle size
4. Sampling volume: 0.2-1000ml
5. Sampling accuracy: better than ± 1%
6. Sampling speed: 5-80mL / min
7. Counting accuracy: ± 10%
8. Resolution: ≤10%
9. Repeatability: RSD <2%
10. Limit coincidence error: 12000-40000 capsules / mL
11. Online pressure range: low pressure 0-6bar, high pressure 5-420bar (optional pressure reducing valve)
12. Viscosity range: ≤350cSt
13. Power supply: AC100-240V, 50 / 60Hz
14. Battery capacity: 5200mAh
15. Running time: 6-8 hours
16. Dimensions: 310 × 305 × 135mm
17.Instrument weight: 7.5kg
