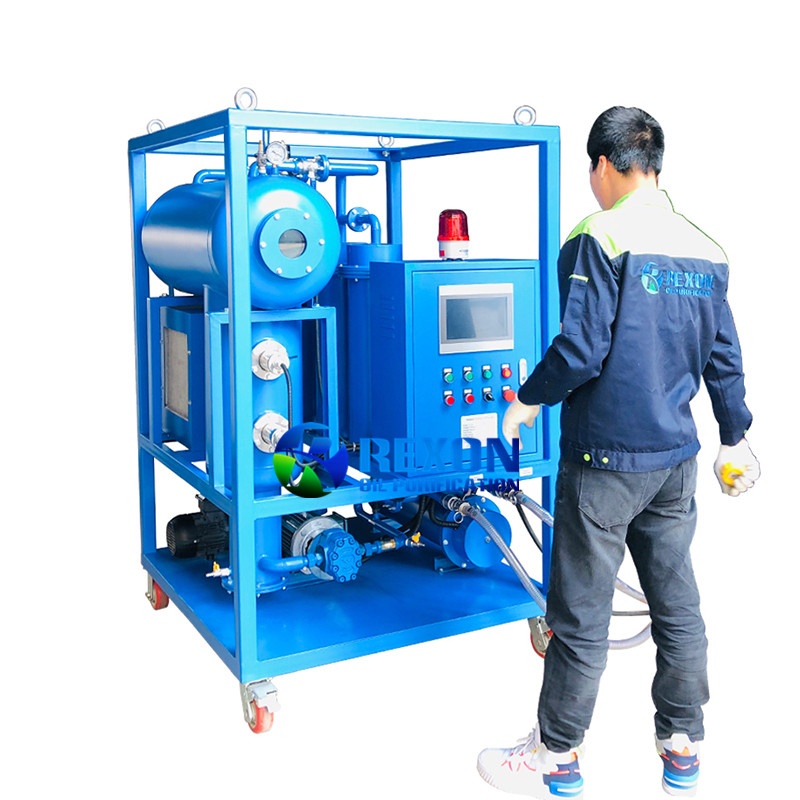

High Vacuum Turbine Oil Purifier with Fully Automatic Operation System

Application:

High Vacuum Turbine Oil Purifier TY-10(600LPH) with Fully Automatic Operation System is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil. This series, which can rapidly and effectively remove the water, gas and impurities aiming at turbine oil’s nature of high water content, easily emulsified and high impurity content, make the oil reach new oil standard.

Advantages:

1. This machine breaks emulsification thoroughly, and the oil is very difficult to be emulsified again after treatment. Its dehydration volume is large and it can drain off the water on line.

2. "T" shape oil vacuum chamber, expanded evaporation area, improved the oil dehydration and degasification effect.

3. PLC programing and big touch operation screen, make the operation more easily.Performance:

WATER REMOVAL Down to less than 50 PPM or less.

PARTICULATE REMOVAL With the use of a high efficiency filter element, 99.5% of particles over 1 micron are removed.Technical Parameters:

Item		Unit	TY-10	TY-20	TY-30	TY-50	TY-100	TY-150	TY-200	TY-300
Flow rate		Liters/hour	600	1200	1800	3000	6000	9000	12000	24000
Working Vacuum Degree		MPa	-0.06 ～-0.095
Working Pressure		MPa	≤ 0.3
Temperature Range		℃	20 ～80
Water content		PPM	≤50
Impurity content		μm	≤5
Gas content		%	≤0.1 %
Cleanness		NAS	≤6 grade (NAS1638)
Demulsification value		min	≤15 (GB/F 7305)
Power Supply			3 Phase, 50 Hz, 380V (or as per requirement)
Heating power		kW	12	15	18	24	45	60	72	84
Total power		kW	14	17	20	27	48	66	81	97
Inlet/outlet caliber		mm	25	25	25	32	42	50	50	60
Weight		kg	400	450	500	600	700	900	1050	1550
Dimension	Length	mm	1280	1350	1350	1400	1500	1500	1600	1800
	Width	mm	750	900	950	950	1000	1200	1350	1400
	Height	mm	1450	1450	1500	1600	1650	1800	1800	1850
