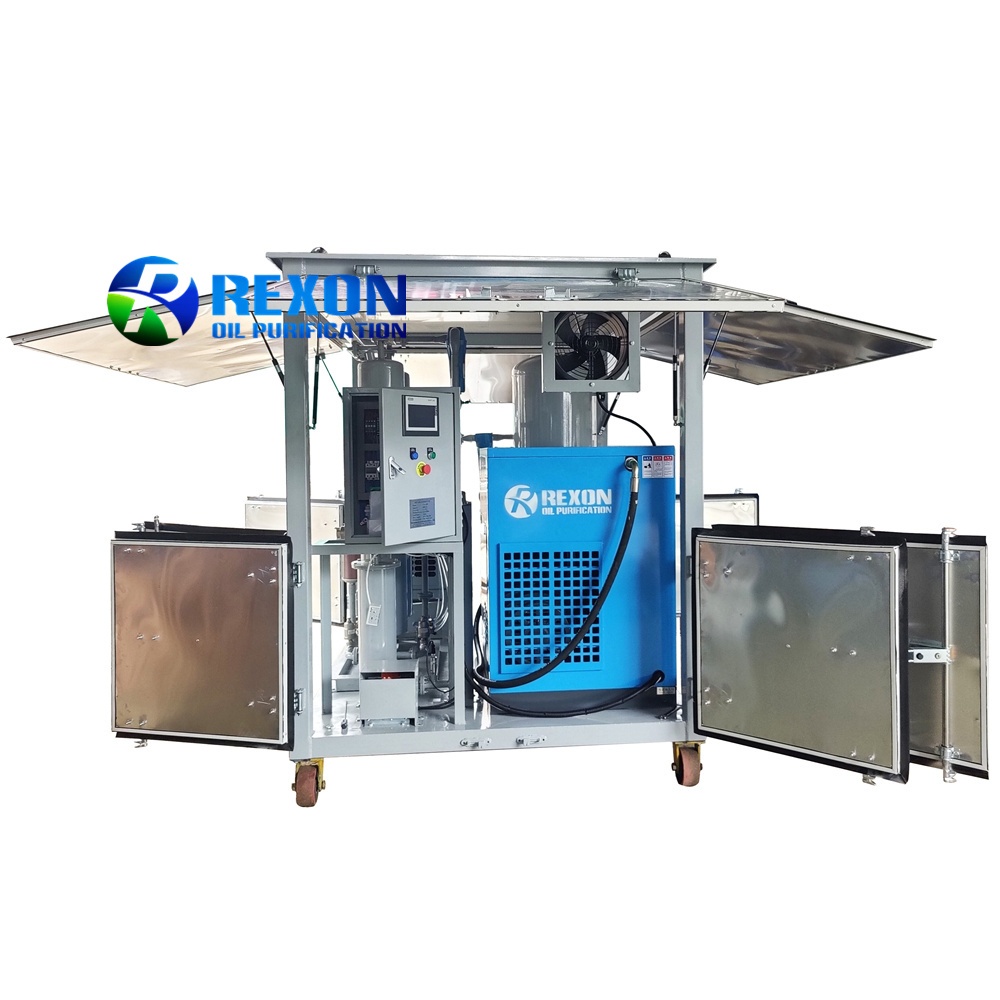

DAG-200 Transformer Dry Air Generator 200m3/hr

DAG-200 Transformer Dry Air Generator 200m3/hr
  • DAG-200 Transformer Dry Air Generator 200m3/hr
  • DAG-200 Transformer Dry Air Generator 200m3/hr
  • DAG-200 Transformer Dry Air Generator 200m3/hr
  • DAG-200 Transformer Dry Air Generator 200m3/hr

DAG-200 Transformer dry air generator is widely used in when the transformer and reactor etc large power equipment are been installed and recondition to produce the dry air.


  • Product No.: DAG-200(200M3/h)

Details

ApplicationDAG-200 Transformer dry air generator is widely used in when the transformer and reactor etc large power equipment are been installed and recondition to produce the dry air. To ensure internal insulation of electrical equipment from moisture, maintenance personnel will not suffocate from lack of oxygen in the inner working of the device. It is more secure, more reliable, better economical and more convenient than bottled gas. When the oil filter works in the rainy days and humid environment, equipment box and oil will do the air drying to ensure improve the insulation of oil and reduce the moisture.
Product Description Model: DAG-200
Gas supply capacity: 200M3/h Working pressure: 0.6~0.8Mpa Supply pressure: 0.05~0.5Mpa Gas dew point: ≤-70°C Filtration accuracy: 0.01μm Exhaust oil content: ≤0.003mg/m3 Solid particle concentration: ≤0.01mg/ m3 Dry air temperature: 20~50°C adjustable Work cycle: 5-30Min adjustable Adsorbent material: Strong composite molecular adsorbent (from REXON) Regeneration method: no heat automatic (no heating required)
DAG-100 product performance indicators
Gas dew point: ≤-70°C
Filtration accuracy: 0.01μm

Features:
1. Adopts low pressure, condensation technique, with the merits of small dimension, light weight, easy operation, energy saving and reliability. 2. With double screw air compressor, low temperature condensed to water technology, etc. 3. Comprehensive utilization of dryer, blot machine, ultra precision filter merits such as scientific combination, produce high quality low dew point of the dry air. 4. The native integration design, compact structure and reasonable, good drying effect, low gas consumption, long working life, composite desiccant use effect is good, service life than ordinary adsorbent extend more than three times. 5. Regenerative adsorption dehydration technology, the high accuracy coalescence dehydration, 0.01μm precision filters to ensure cleanliness.
