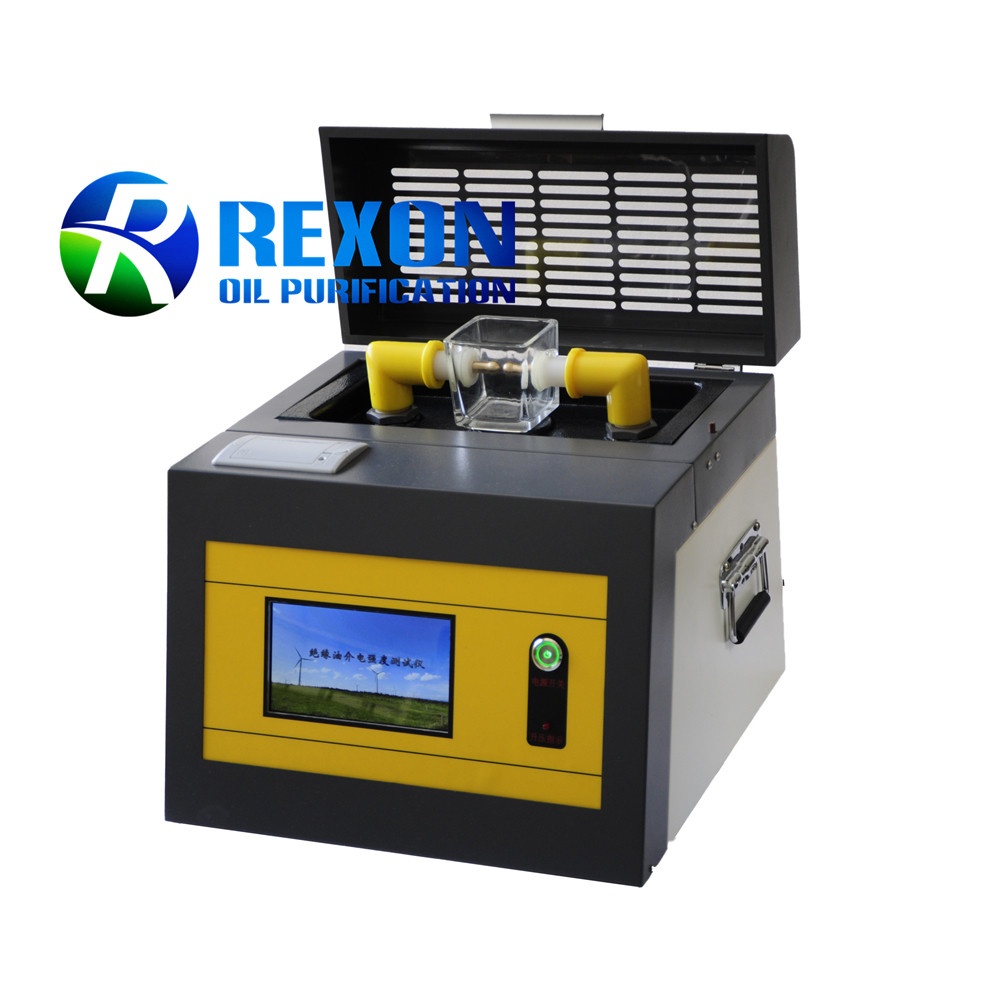

Touch Screen Type Fully Automatic Transformer Oil BDV Tester Model

Overview

This model of Insulating Oil Breakdown Voltage Tester for insulating oil is a high-accuracy and full digital industrial instrument developed by all the scientific research and technical personnel of our company, according to the relevant standards and regulations of insulating oil testing, giving full play to their own advantages, after many field tests and long-term unremitting efforts. The machine is easy to operate and beautiful in shape. Due to the use of automatic digital microcomputer control, the measurement accuracy is high, anti-interference ability is strong, safe and reliable.

Main Functions and Features

1. The instrument is controlled by a large capacity single chip microcomputer, which is stable and reliable;
2. The instrument is equipped with temperature, humidity and clock display functions, and can be customized for infrared oil temperature measurement.
3. The wide range watchdog circuit is set in the instrument to prevent the crash;
4. A variety of standard options. The instrument program is equipped with GB / t507-1986, GB / t507-2002, dl429.9, iec156 and self-programming operation, which can adapt to a variety of choices of different users;
5. The oil cup of the instrument is made of special glass and high polymer materials, which are processed finely to prevent oil leakage and corrosion;
6. The unique high-voltage sampling design of the instrument allows the test value to enter the A / D converter directly, avoids the error caused in the analogue circuit, and makes the measurement result more accurate;
7. The instrument has over-current, over-voltage, short-circuit and other protection functions, and has strong anti-interference ability and good electromagnetic compatibility;
8. Can switch between Chinese and English at will to meet the needs of any customer;
9. 232 The data transfer;

Main Technical Indicators1. Booster capacity 1.5 KVA
2. Step up speed 0.5kv/s-5.0kv/s (increasing every 0.5) 10 gears optional Error 0.2kv/s
3. Output voltage 0-100 kV (optional)
4. Voltage accuracy (2% reading + 2 words)
5. Power distortion rate < 1%
6. Electrode gap standard 2.5mm
7. Test times 6 times (1-9 times optional)
8. Static release time 900s (0-9000 s optional)
9. Interval rest time 300s (0-900s optional)
10. Mixing time 15s (0-250s optional)
11. Overall dimension: 410mm × 380mm × 370mm
