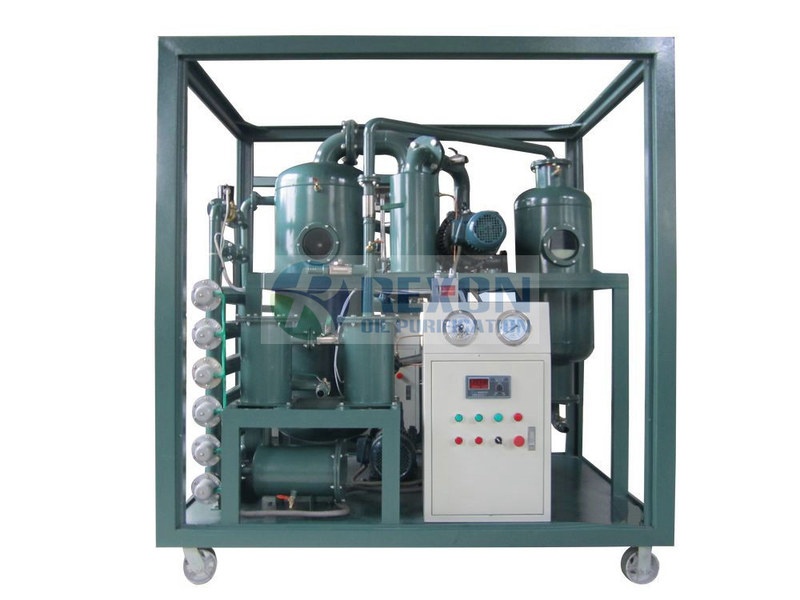

Vacuum Type Transformer Oil Regeneration Purifier Series ZYD-I
Rexon vacuum type transformer oil regeneration purifier series ZYD-I is applied to treat various of old and unqualified insulation oils including aging transformer oil specially for the power which is above 110KV, mutual inductor oil, switch oil and so on. It can regenerate the seriously deteriorated oil by removing the polarity materials, moisture, gas and other contamination like acidity matters. Also it can inject the insulating oil into the transformers on-line.
Besides the normal vacuum transformer oil purifier’s basic functions of dewatering, degassing and eliminating impurities for contaminated transformer oil, this transformer oil regeneration purifier machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the acidity matters, deep oxides, free carbon in the oil high effectively. It can make the seriously deteriorated oil reach to the normal and standard index like particles,anti-oxides, acid- alkali, water-solubility.
1. PH ≥5.5
2. Acid ≤ 0.03mgkoH/g
3. Flash point ≥145°C
4. Dielectric strength≥75KV
5. Dielectric loss: tgδ(90°C)% ≤0.001
