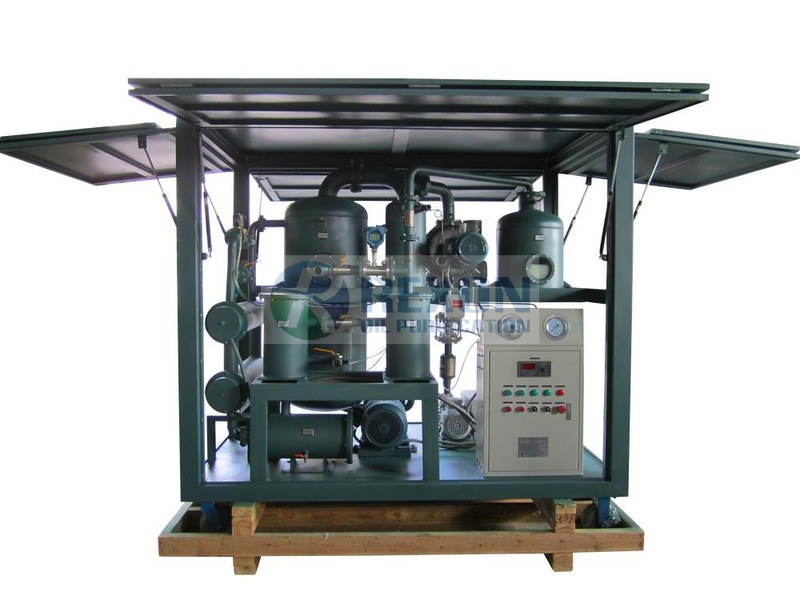

Rexon vacuum type old transformer oil regeneration system (Series ZYD-I) has been specially designed for on site use to completely regenerate insulation oil.


  • Product No.: ZYD-I-100(6000LPH)

Details

Back Ground

Series ZYD-I Double-stage vacuum Transformer oil regeneration machine adopts the double stages vacuum system, which can improve the machine working vacuum value highly. So it can remove the water, gas and impurities from transformer oil fast and completely.

Application

The Rexon vacuum type old transformer oil regeneration system (Series ZYD-I) has been specially designed for on site use to completely regenerate insulation oil. It has been specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers especially for the power, which is over 110KV.

The series ZYD-I Double-stage vacuum Transformer oil regeneration purifier not only provide dewaters, degases and remove impurities, but also remove acidity, sludge, free carbon, deep oxide, and other soluble oil decay products and discoloration. And it can improve the voltage and make the every index like acid value, PH value, of the insulation oil reach the national standard and improve the insulation oil's index. This is accomplished by the use of high vacuum degasification technology and particulate filters combined with our special silica gel. After treating, the oil can be reused as new.

Advantages

Also it can inject the insulating oil into the transformers on-line. The ZYD-I system provides regular oil purification such as degassing, drying and particulate removal but also can remove acidity, sludge, other soluble oil decay products and discoloration. For special application, the system also can be mounted on a leak proof base and can be installed and operated on a trailer.

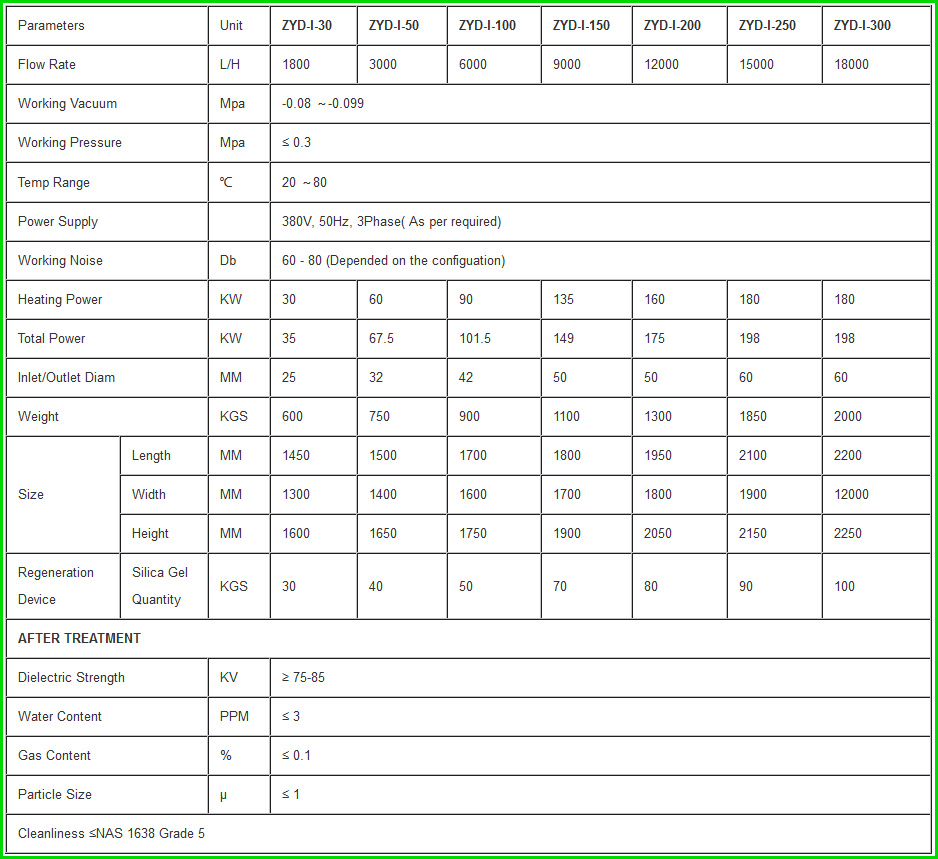

Technical Parameters
